CTC-002
AUTO
CONTACT TIP
CHANGER
CONTACT TIP
CHANGER
Compatible
with many
contact tips
with many
contact tips
This multi-functional model combines four functions: wire cutting, nozzle cleaning, spraying anti-spatter liquid, and replacing contact tips.
This model features a streamlined design, and four fully automated functions. It significantly increases the operating rate of robots.
This model features a streamlined design, and four fully automated functions. It significantly increases the operating rate of robots.

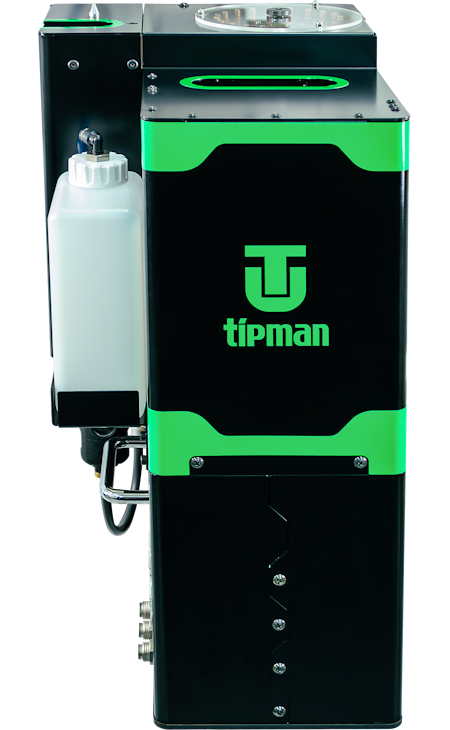

CTC-002
Auto Contact Tip Changer
Outline
This high-performance model integrates Tipman’s cutting-edge technologies.
It contributes to maintaining welding quality and efficient production.
– Equipped with four functions: “wire cutting,” “nozzle cleaning,” “spraying anti-spatter liquid,” and “replacing contact tips”
– One cycle takes approximately 70 seconds.
Specification
| Model | CTC-002 |
|---|---|
| Power | 24V DC , 5A |
| Air pressure | 0.5～0.6Mpa |
| Weight | 30Kg |
| Size | W260*D340*H510 |
01

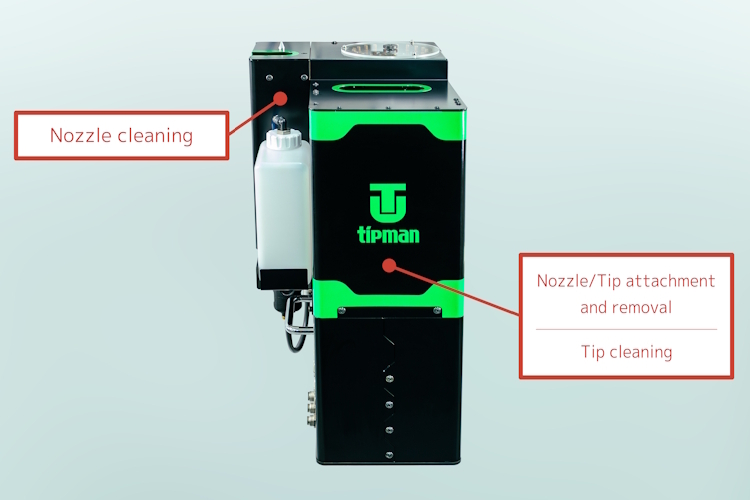

Tipman’s technologies are integrated into a single product.
02

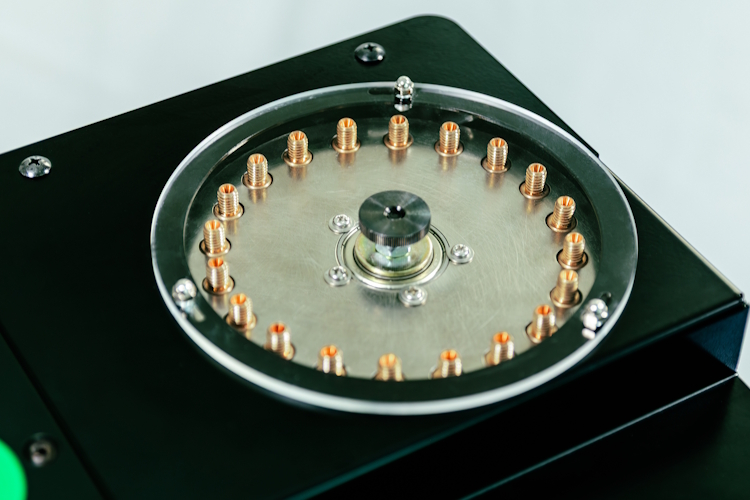

Up to 20 tips can be loaded.
03

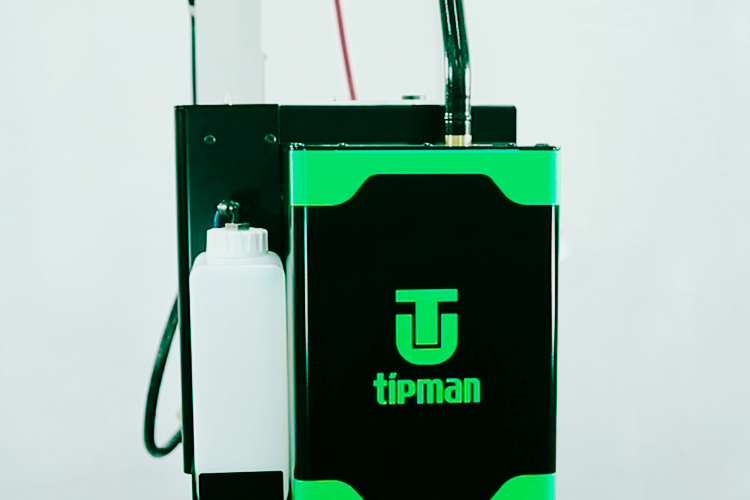

While the torch (robot) remains in the same position, the CTC-002 automatically finishes nozzle cleaning and replacement of tips.
04

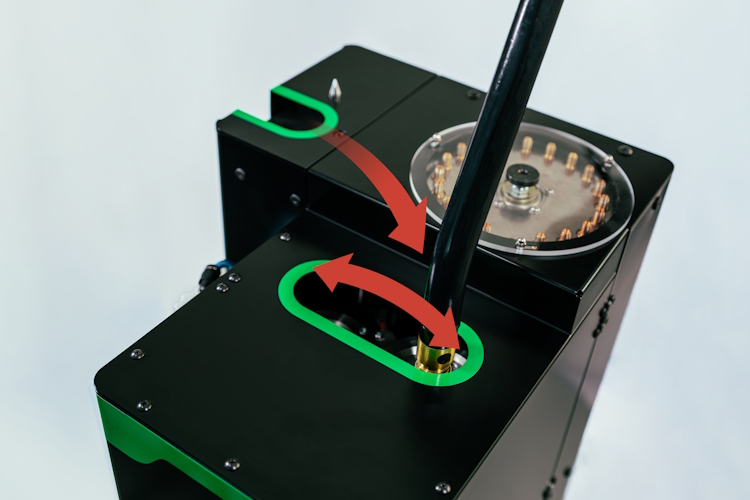

There are two torch insert ports.Teaching becomes easier by using only X and Y directions.
05

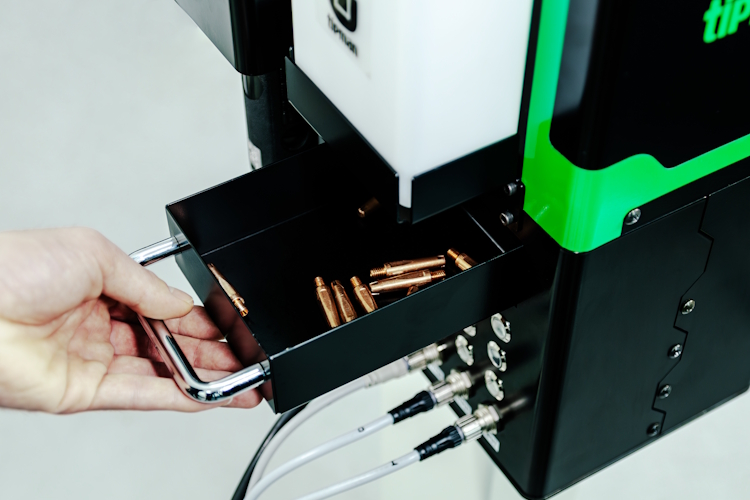

Old tips can be collected in bulk.

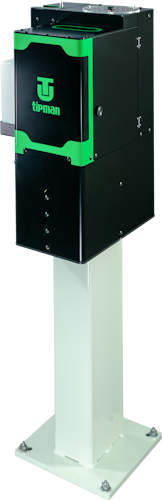

OPTIONAL
STAND
RELATED
CTC-001
