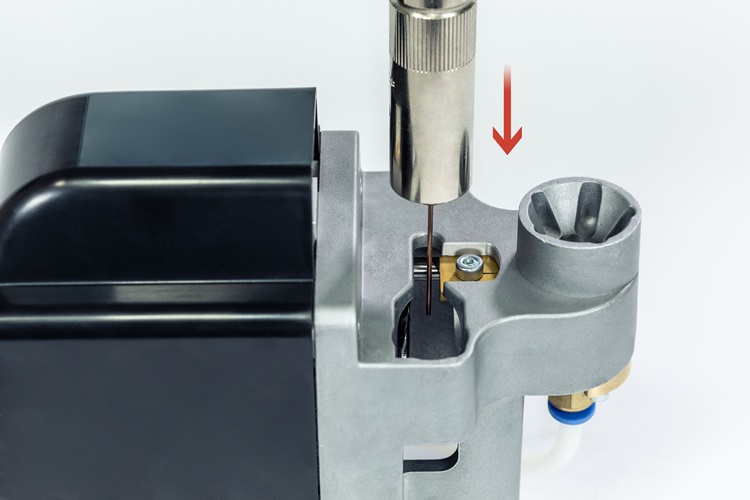

The torch is inserted into the wire cutter slot,
and the wire is extended.
NCOP-WS01
WIRE
CUTTING
SPRAY
SYSTEM
CUTTING
SPRAY
SYSTEM
A compact
integrated
model
integrated
model

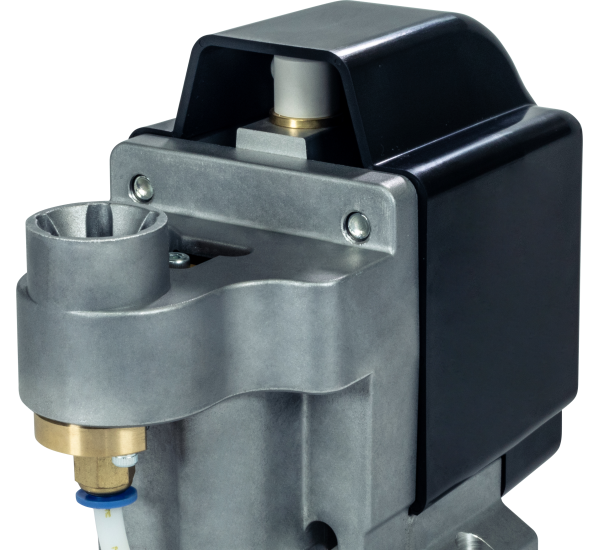

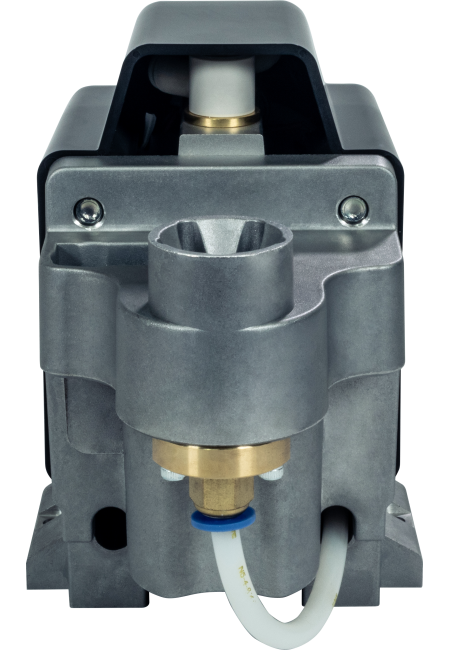

A compact integrated model.
It combines the functions of the anti-spatter spray system and wire cutter.
It combines the functions of the anti-spatter spray system and wire cutter.
NCOP-WS01
Wire Curtting & Spray System
Outline
The functions of the anti-spatter spray system and wire cutter have been integrated into a single device.
As it is quite compact despite having two functions, it can be introduced to a wide variety of production lines.
As it is quite compact despite having two functions, it can be introduced to a wide variety of production lines.
Specification
| Model | NCOP-WS01 |
|---|---|
| Power | Solenoid valve DC24V |
| Air pressure | 5kgf/cm² |
| Wire diameter | φ0.5-1.8mm |
| Air hose diameter | Inside diameter of φ6 mm or more |
| Air hose | for sputter |
| Weight | 1.8kg |
01
02
The wire is cut to the predetermined length.
03

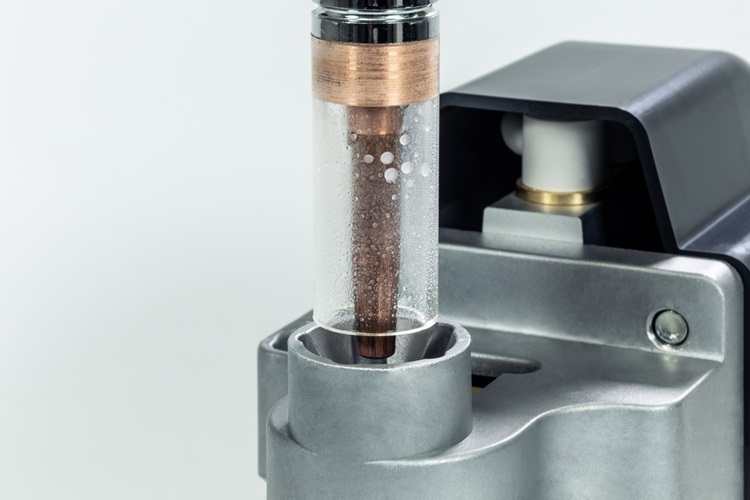

The torch is then inserted into the spray injection port,
where it is sprayed with an anti-spatter spray.
where it is sprayed with an anti-spatter spray.
04

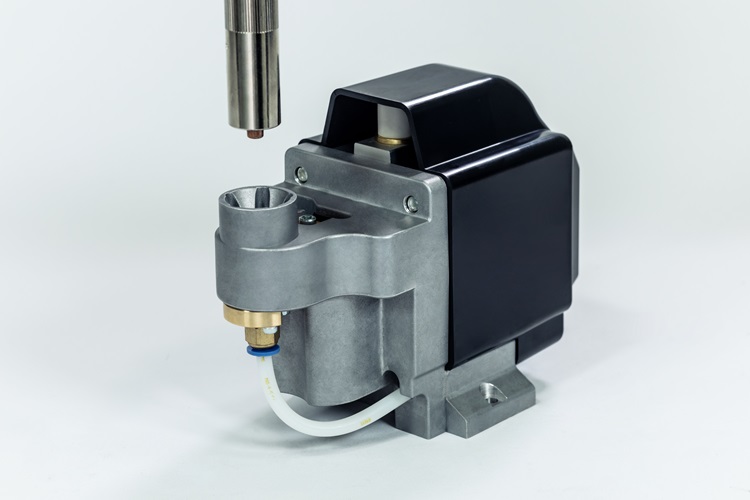

The torch is pulled back up and the task is complete.
